Analytical and Testing Technology Corporation

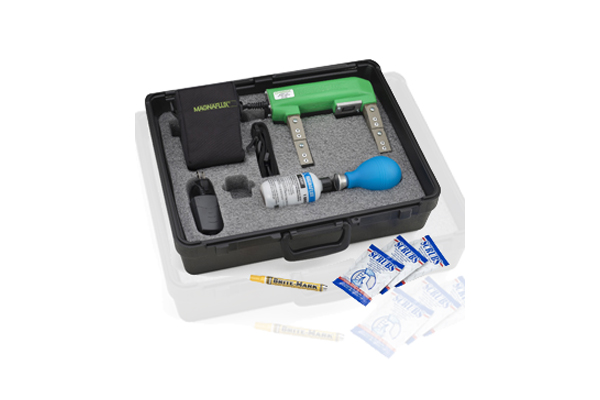

Magnavis Y-8 Battery Operated Magnetic Yoke Kit

The Magnavis Y- 8 Battery Operated Magnetic Yoke brings battery portability to magnetic particle yoke testing. magnavis y-8

  • Core Benefits:
    * 100% portable for field inspections
    * Batter pack with convenient shoulder strap
    * Articulating, double-jointed legs contour to part’s shape for superior contact
    * Solid state controls located in the yoke’s housing for maximum safety and reliability
    Y-8 Yoke Kit Part Numbers:
    * 611710: Y-8 Yoke Kit 115V
    * 611710-01: Y-8 Yoke Kit 230V

    Kit Includes:
    Battery Powered Yoke, Charger, Battery Pack with Shoulder Strap, #1 Gray Powder, Powder Spray Bulb, Paint Marker, SCRUBS Hand Cleaner, and Instructions.

  • WEIGHT: 7.75lbs
    LEG SPAN: 0″ – 12″
    YOKE CURRENT DRAW: 4 Amps @ 6 Volts
    CORD LENGTH: 12 feet
    WARRANTY: 1 YEAR
    BATTERY SPECIFICATION:
    * 6 Volt, 12 Amp Hour
    * 5.25 lbs
    * 4.25″ x 2.75″ x 5.5″
    * Output Voltage Charge 6.84V or 7.35V
    * Battery Output Current 1.6 Amps Maximum
    * Battery Operating Temp. Range: -40C to 60C (-40F to 140F)
