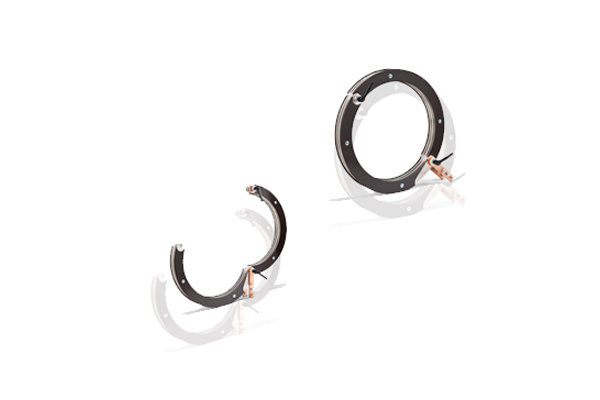

Magnaflux accessory coils expand MPI equipment part testing capabilities and discontinuity detection. A variety of Magnaflux 5-turn, portable, flat and split coil options are available to expand and improve the part testing capabilities of your existing MPI equipment. |
 |
Features
COILS FOR BENCH UNITS
5-turn coils in sizes that conform to most customer parts for optimal magnetic field applications.
Part Numbers:
28501: 12″ (30 cm)
28511: 16″ (41 cm)
28531: 20″ (51 cm)
28541: 25″ (64 cm)
Specifications Compliance: ASTM E709-08, ASTM E1444, BPVC
FLAT MAGNETIC COIL
For non-contact magnetic particle inspection of small parts such as fasteners and ring-like parts. Can be used with any magnetic particle unit or power pack to allow for quick, easy processing of several small parts at one time.
Part Number: 611700 – Flat Magnetic Coil
Specifications Compliance: ASTM E709-08, ASTM E1444, BPVC
L-10 COIL
Portable AC coil for detecting surface cracks.
Part Numbers:
50651: Coil size 10 (25 cm) I.D., 15 (38 cm) O.D. Comes with durable case, flexible 10 (3 m) power cord. 115V, 60hz, single-phase power source required. 2,800 amp turns.
620983:Coil size 10 (25 cm) I.D., 15 (38 cm) O.D. Comes with durable case, flexible 10 (3 m) power cord. 230V, 50/60hz, single-phase power source required. 2,800 amp turns.
Specifications Compliance: ASTM E709-08, ASTM E1444, BPVC
CLAM SHELL COIL ASSY
Three-turn split coil that allows for examination of large parts.
Part Number: 623031 Clam Shell Coil Assy 50 cm (19.7)
Specifications Compliance: ASTM E709-08, ASTM E1444, BPVC
SPLIT COILS
Part Numbers:
14725: 12″ diameter 4/0 cable with eitherends
14726: 18″ diameter also available
14727: 24″ diameter also available
