Pundit PL-200

The Pundit PL-200 is a best-in-class Ultrasonic pulse velocity (UPV) test instrument to examine the quality of concrete and other materials such as rock, wood and ceramics.

The Pundit PL-200 is a best-in-class Ultrasonic pulse velocity (UPV) test instrument to examine the quality of concrete and other materials such as rock, wood and ceramics.
It provides an extended range of measurement modes and superior features for on-site testing: Assess the concrete uniformity using standard A-Scans and the new Line Scan functionality, estimate the compressive strength of concrete or measure the surface velocity and the depth of perpendicular cracks.
The intelligent software supports directly accessible settings in real time from the measuring screen. The highest resolution and sharpest image available in the market allows best possible analysis of the measured waveforms.
Proceq offers an extensive range of transducers for the Pundit PL-200 providing highest accuracy and a proven field track record.

Download brochure.

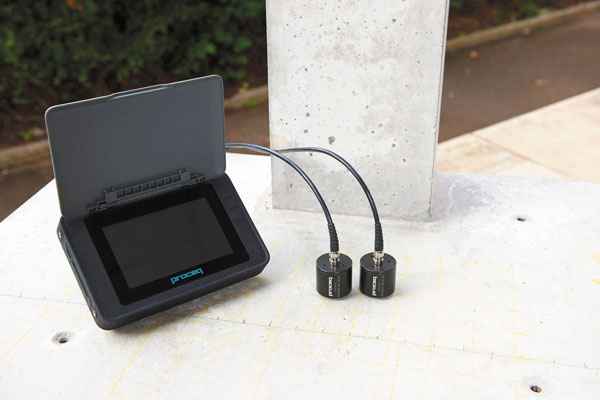

 pl200

    • Line scans for concrete uniformity assessment
    • Zoom and scroll for precise A-Scan inspection
    • On board storage and review of waveforms
    • Settings directly accessible on measuring screen
    • Dual cursor for manual A-Scan evaluation
    • Separate cursor to measure signal amplitude
    • Improved surface velocity measurement
    • Automatic and manual triggering and user adjustable trigger threshold
    • A-Scan update rate up to 25 Hz
    • Expandable with Pundit Pulse Echo transducer

    • Range: 0.1  7930 microseconds
    • Resolution: 0.1 microseconds (< 793 microseconds), 1 microsecond (> 793 microseconds)
    • Display: 7 colour display 800×480 pixels
    • Pulse Voltage UPV: 100  450 Vpp
    • Pulse Voltage UPE: 100  400 Vpp
    • Bandwidth: 20  500 kHz
    • Reciever Gain: 1x  10000x (0  80dB) [11 steps]
    • Memory: Internal 8 GB Flash memory
    • Regional Settings: Metric and imperial units and multi-language supported
    • Battery: Lithium Polymer, 3.6 V, 14.0 Ah
    • Battery Lifetime: > 8h (in standard operating mode)
    • Operating Temperature: 0C  30C (Charging, running instrument)
      0C  40C (Charging, instrument is off)
      -10C  50C (Non-charging)
    • Humidity: < 95 % RH, non condensing
    • IP Classification: IP54
